About Belt Drive / Chain Drive Android App

This app is designed to help engineers calculate some basic belt drive and chain drive parameters quickly to help in their everyday design work flow.

App includes calculation for,
BeltDrive
Crossed Belt Drive
V Belt Drive
Chain Drive

Easily calculate Belt Length, Angle of Contact, Tension in Belt, Inside and Outside length of V belt, pitch length/pitch width of V Belt, Length of Chain Drive, Belt/Chain Velocity, Pitch Diameter of Chain Sprockets, No. of Links in Chain Drive.

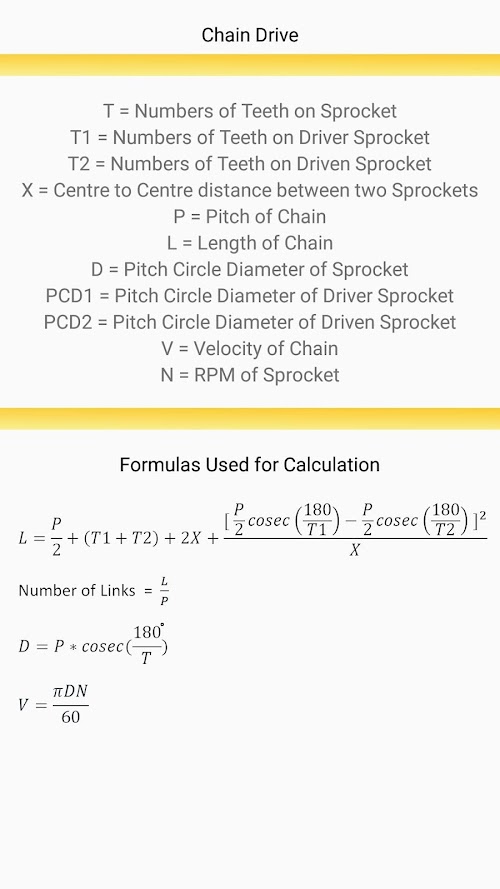

Equations used for calculation is also provided for clarification.

This parameters are relatively simple to understand but requires some calculation and involves big formulas.
Using this app Engineers can save time and focus on their actual design work.

Other Information:

Requires Android:
Android 4.0.3+
Other Sources:

Download

This version of Belt Drive / Chain Drive Android App comes with one universal variant which will work on all the Android devices.

Variant
3
(Feb 26, 2018)
Architecture
universal
Minimum OS
Android 4.0.3+
Screen DPI
nodpi (all screens)

All Versions

If you are looking to download other versions of Belt Drive / Chain Drive Android App, We have 1 version in our database. Please select one of them below to download.
