biiCADo Touch Pro for mobiles

About biiCADo Touch Pro for mobiles Android App

biiCADo Touch is a professional 2D CAD application, optimized for use in mobile devices. The intuitive operation and a variety of CAD Tools enable fast and efficient creation of technical CAD drawings in DXF format. Create PDF documents of your CAD drawings and send them directly from biiCADo touch, to share them with others.

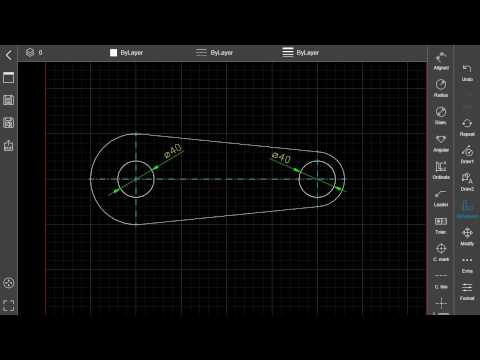

Demovideos can be found at: http://www.bast2i.com/support.html

General:
• Create 2D CAD drawings
• Drawing in Inch and metric units
• Import / export of DXF documents via e-mail
• Dropbox support
• Organize your DXF and PDF documents clearly in project folders
• Undo / Redo any number of times

Supported geometry elements which can be created and edited:
• Point, Line
• X-Line, Ray
• Polyline, Rectangle, Polygon, Donut, Array
• Arc, Circle, Ellipse, Elliptical Arc, Spline
• Text, Multiline Text
• Hatch, Solid
• Create Block, insert Block, Block attributes
• Inserting external DXF blocks.

Dimensions
• Horizontal, Vertical, Aligned
• Radius, Diameter
• Angular, Coordinates
• Tolerance, Leader lines
• center marks

Edit Drawing:
• Power Edit (Access to all element properties)
• Grips
• Delete, copy, move
• Rotate, scale, mirror
• Trim, extend
• Chamfer, Fillet
• Offset

Supported fonts:
• txt, isocp, romanc, italic, greekc

Supported hatch:
• Ansi31, Ansi32, Ansi33, Ansi34
• Ansi35, Ansi36, Ansi37, Ansi38
• Solid

Tools for precise drawing:
• Magnifier
• Snaps
• Ortho mode, grid view, grid snap

Supported Presettings (add, delete, edit):
• Layer, Linetype
• Text style, dimension style, point style
