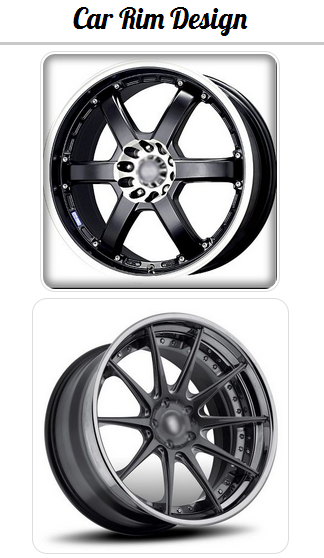

Car Rim Design

About Car Rim Design Android App

that should be noticed while trying to replace the car wheel or car rim. important specifications prior to replacing car rim

1. The size of a car wheel ring
handled ring diameter and width of the wheel. Figures above 16 x 6.5 above mean diameter of 16 with a width of 6.5 inches. The larger the wheel, the width is usually larger. The diameter and width will affect the selection of tires later. The larger the diameter of the wheel, the possibility of used tires will be thinner. Most cars have standard wheels measuring between 14-17 inches.

2. Pitch Circle Diameter (PCD)
Also known as bolt pattern, pattern and stud bolt circle diameter. PCD code actually consists of two things, the number of bolts and PCD itself. Adjust the native PCD wheels with wheels that you want instead.
The number of bolts. Each car is equipped with a number of different screws for mounting the wheel. Similarly, the number of screw holes in the standard wheel manufacturers may be different. Most have four or five bolt holes. In the case of modification of bolt holes, more commonly known as holes.
PCD. The layout of the hub bolt circle (center meeting all traffic). So we can imagine this imaginary bolt circle pattern. This is where the diameter PCD obtained. There have ways to calculate it. Most cars have a PCD 100 or 114.3 mm.

In conclusion, the number of 4 x 100 in the example above means the wheel has four screw holes with a PCD of 100 mm

3. Offset
This one is also important. If the offset is not true, no effect. For example, the wheel can come out fenders or get stuck when turning. Offset is obtained based on the distance from the center tread wheels (diameter) with the hub. Offset can be negative, positive, or zero. Usually the car has standard wheels with positive offset. The term "Einpresstiefe 'abbreviated' Et." Often used interchangeably with the phrase offset. Figures et. 38 above means the wheel has a positive offset of 38 mm.
