ElectroBuddy

About ElectroBuddy Android App

ElectroBuddy- The great collection of most widely used electronics tools under one roof for all electronics students, enthusiasts and industry professionals. The best part of this app is- its windows look-alike user interface for its user making it too friendly to love it.
The goal of this app is to provide you with an easy and smart way to learn all you want about electronics engineering via reference tables, pinouts and formulae. Whether you are a student, hobbyist, or just curious about electronics, this app will provide you with the all information you need helping you to achieve your objectives.

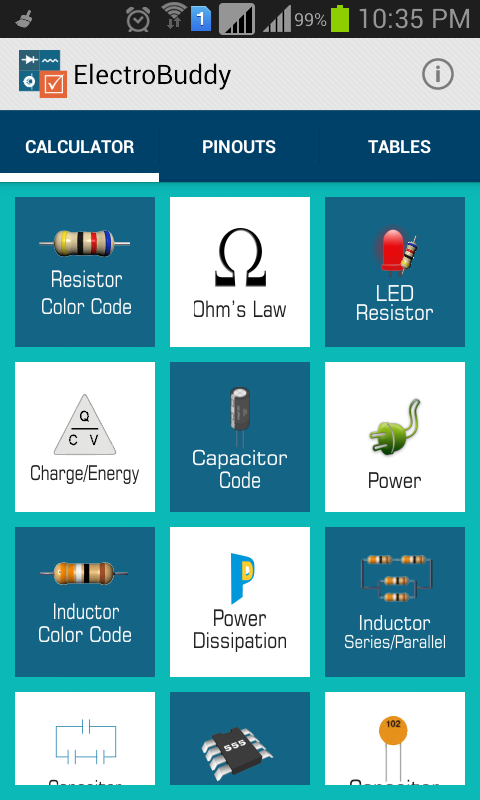

It has three main categories namely Calculators, Pinouts and Tables.

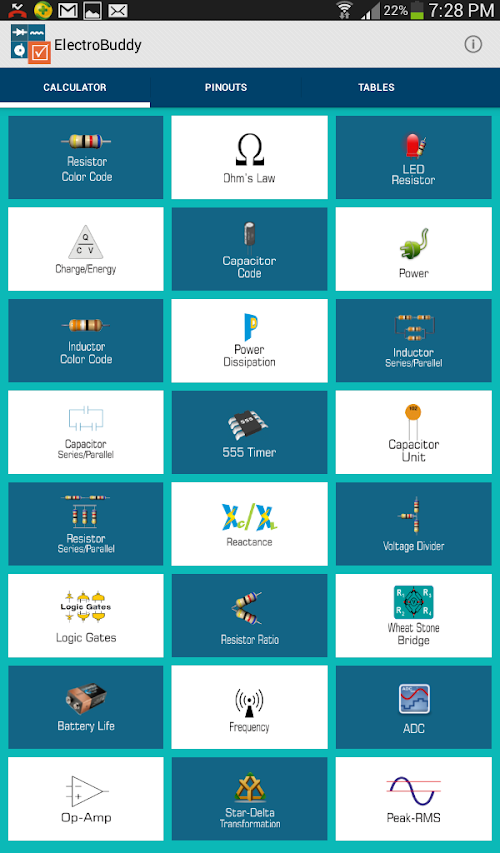

Calculators:
Free version has best 30 calculators in a row to ease out your calculation part along with all necessary formulae/circuits for your reference.

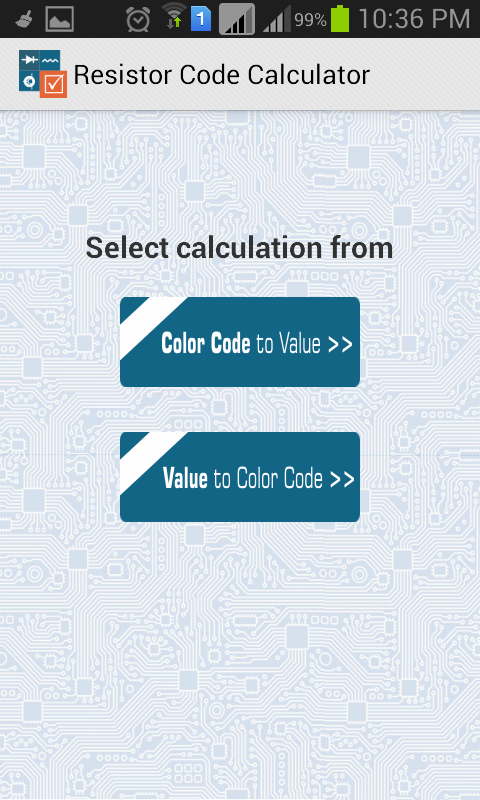

1) Resistor Color Code (4 band, 5 band, 6 band with color code to value and value to color code feature)
2) Ohm’s Law
3) LED Series Resistor (LED type, Supply voltage and forward current)
4) Charge/Energy
5) Capacitor Code (code to value and value to code)
6) Power (AC and DC)
7) Inductor Color Code (color code to value and value to color code feature)
8) Power Dissipation
9) Inductor Series/Parallel (addition become with this tool)
10) Capacitor Series/Parallel (addition become with this tool)
11) 555 Timer (Monostable and Bistable Mode)
12) Capacitor Units
13) Resistor Series/Parallel (addition become with this tool)
14) Reactance calculator (Inductive, capacitive and resonance)
15) Voltage Divider

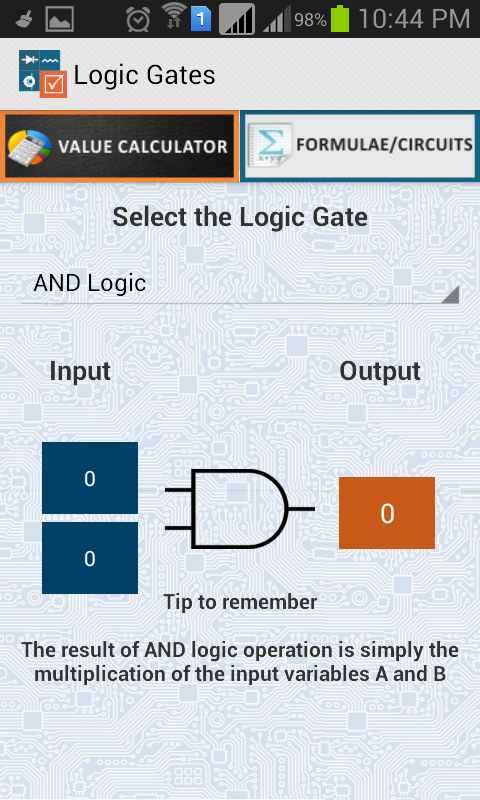

16) Logic Gates (covered all Boolean logic Gates along with easy tip to remember)
17) Resistor Ratio (with invert operation feature)

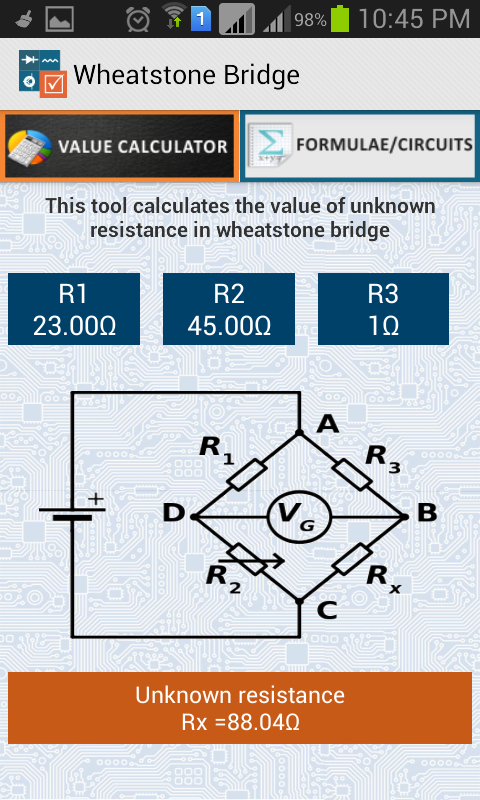

18) Wheatstone Bridge value calculator
19) Battery Life( with complete life span in day, hours, min)
20) Frequency (customization available with some standard wavelengths offered)
21) ADC (Resolution, Quantization, ADC value and SQNR)
22) Op-Amp (Differential, inverting and non inverting amplifiers)
23) Start-Delta Transformation
24) Peak-RMS(Peak, RMS, Peak-Peak)
25) Resistor SMD Code
26) PCB Trace Width
27) Inductor Design Tool
28) Adjustable Voltage Regulator
29) Decibel
30) Filter

PINOUTS:
Free version has best 39 PINOUTS Diagram in a row to ease out your pinning need.
Electronic Components:
1) MOSFET
2) Diode (1N4001)
3) LED
4) Diode (1N4007)
5) Capacitor
6) Diode (1N4148)
7) NPN Transistor (2N2222)
8) Piezo Buzzer
9) Transistor (BC 548)
10) RF Module (433MHz)
11) BC 547
12) Trim POT
13) Relay
14) IR LED
15) Transformer

Display Devices:
1) 16x2 LCD
2) Seven Segment Display
3) Graphical LCD

Connectors:
1) Serial Port
2) VGA
3) Parallel Port
4) RCA
5) SCART
6) EIDE/ATA-SATA
7) HDMI
8) XLR and DMX
9) Display Port
10) PS/2-AT
11) S-Video
12) USB (2.0 Standard, Mini, Micro, USB 3.X)
13) DVI(with mini)
14) Car Audio ISO
15) Ethernet Port
16) PDMI
17) FireWire
18) DC Power(Male and Female)
19) MIDI

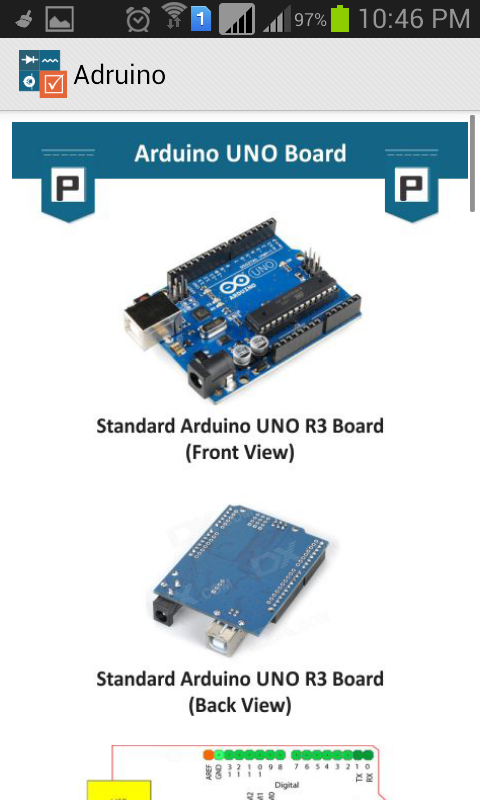

20) Arduino UNO Board(complete pinout with overview, layout, header and features)
21) Registered Jack(RJ 48C, RJ 48X, RJ 61)

Tables

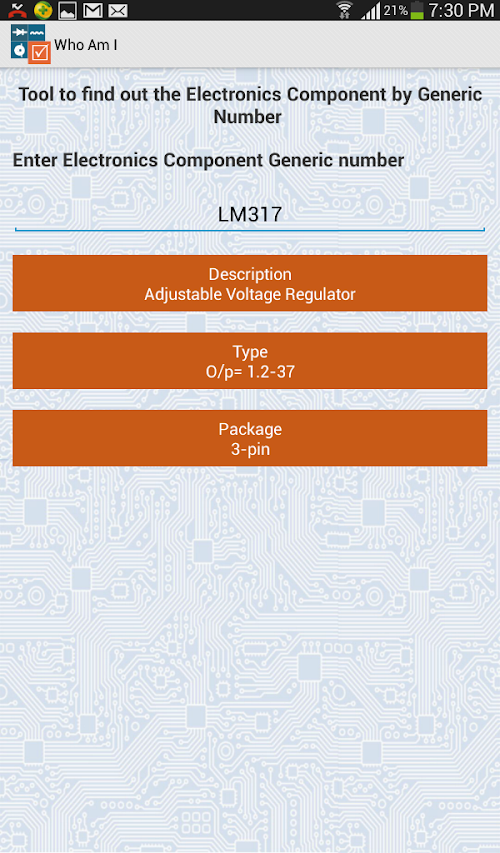

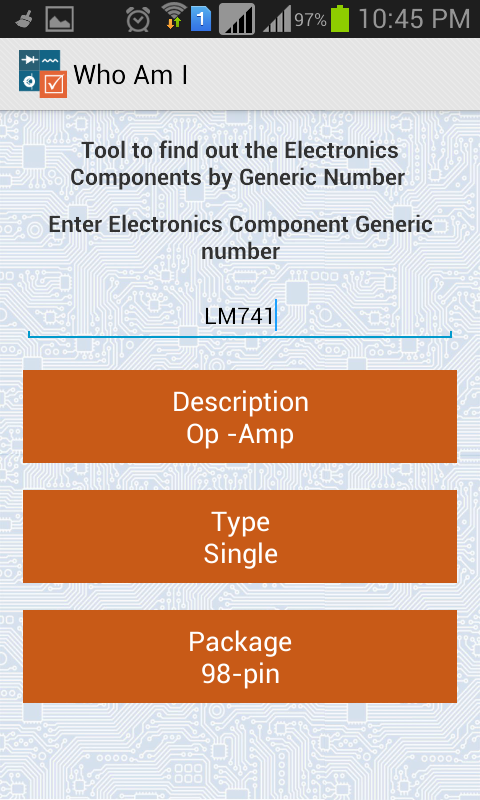

1) Who am I? ( Get the description, type and packaging of the entered electronic components)
2) AWG/SWG Wire Size

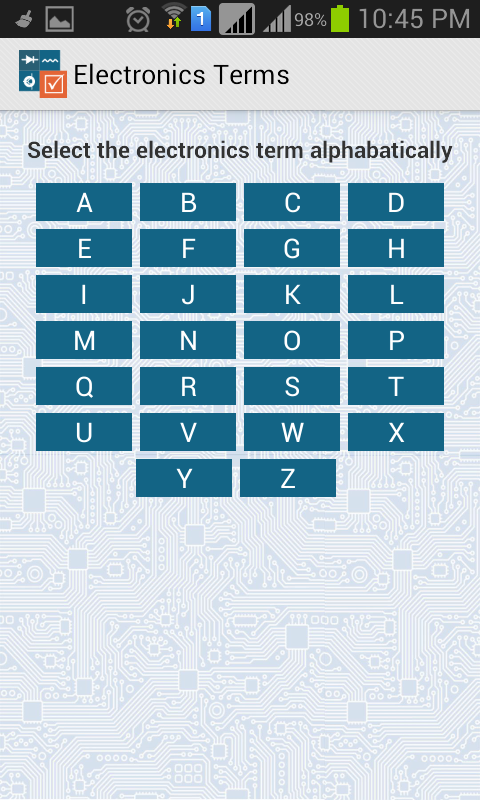

3) Electronic Terms (Search Alphabetically)
4) 7400 Series
5) LED
6) Logic Gates (with Boolean Theorems)
7) Ohm’s Law
8) POT Code
9) Relay Type
10) Circuit Symbols (with categories)
11) LED Resistor
12) Resistivity
13) SI Units
14) RF Spectrum
15) Standard Capacitors
16) Voltage Regulator (78XX Series and LM Series)
17) Standard Resistor

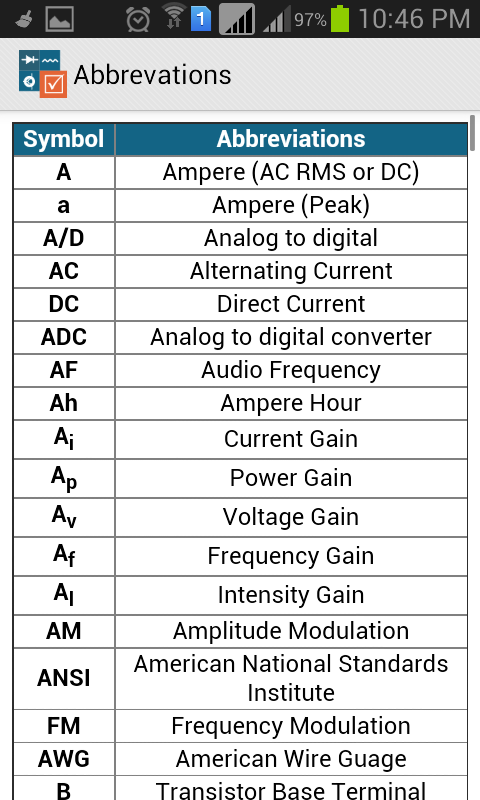

18) Abbreviations (Latest what you can look for)
19) Frequency
20) Power/Energy
21) Transistor

ElectroBuddy- Your true electronics companion
All the above calculators comprise of formulae and relevant circuits.
For all those who wanted an ad free version of the app,we have launched our pro version with improved features.
ElectroBuddy Pro:Kindly download the app
