EWP 2011 Electrical Wiring Pro

About EWP 2011 Electrical Wiring Pro Android App

Electrical Wiring Pro is now EWP 2011. A new separate app, EWP 2014, has the same
functionality, but is updated for the 2014 NEC. EWP 2014 will receive new features
and EWP 2011 is now in maintenance/bugfix mode.

** If you are thinking of buying this app, you probably want to buy EWP 2014 instead.**

Over 40 Useful Electrical Calculators & Tools, each of which could be an app
in its own right.

For Electricians, Power Engineers and other Electrical Professionals.
Written by a working Electrician using it on a daily basis.

Calculations per National Electrical Code 2005, 2008 and
2011.

o NEW Residential/Load Calculations
- Single Family Dwelling
- Multi Family Dwelling
- Range Calculations
- Send results via email for verification and documentation

o Ampacity / Wire Size (AWG only)
- Wire Size -> Ampacity
- Ampacity Needed -> Wire Size
- Voltage Drop -> Wire Size
- Dwelling Service Size
- GEC Size
- EGC Size
- New Ampacity section includes
o Improved user interface,
o NEC 2005, 2008 and 2011 (the updates are accounted for by the app)
o > 700 locations with Ambient Temps

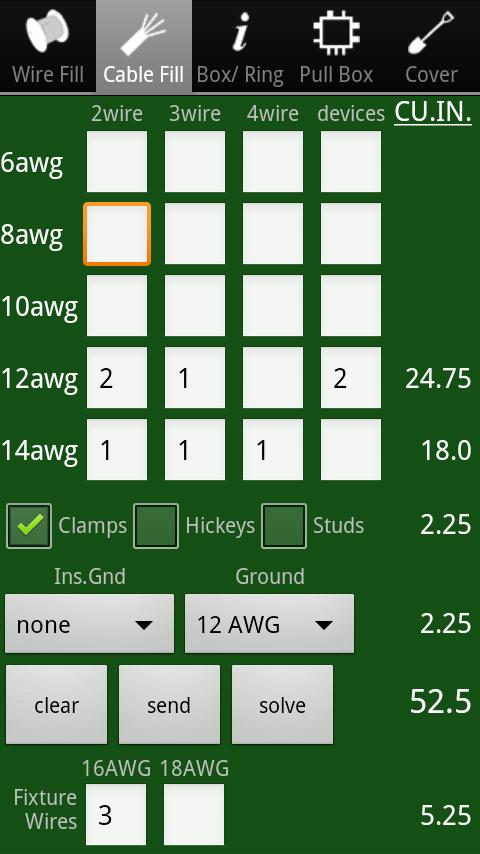

o Boxes / Cover
- Box Size from Wires / Devices
- Box Size from Cables / Devices
- Standard Box and Typical Plaster Ring INfo
- Pull Box Sizing

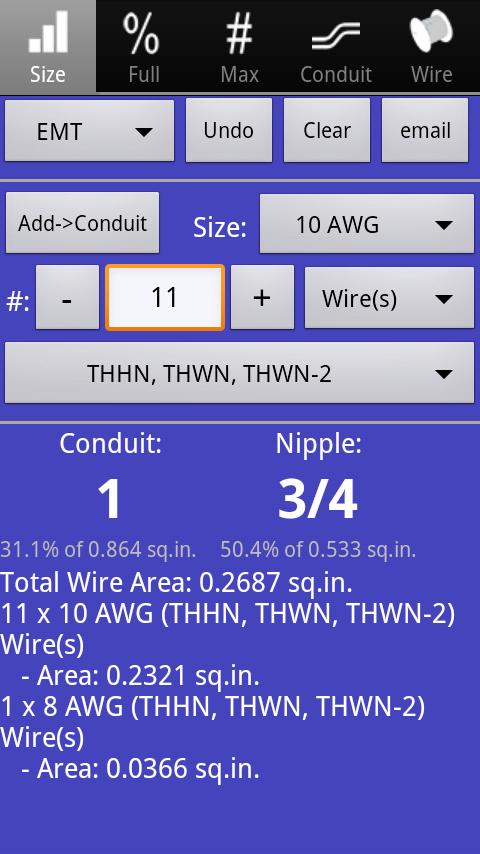

o Conduit Fill
- Wires -> Conduit Size Needed
- Wires/Conduit -> % full
- Maximum Wires/Conduit
- Conduit Size Details
- Wire Size Details

o Conduit Bending
- Standard and Rolled Offsets
- Parallel Offsets
- 3-point Saddle
- Round and rectangular corner obstacles
- Segment Bends
- Minimum Bend Radius One-Shot/Full Shoe or Other bends

o Voltage Drop
- Required voltage or % drop -> Wire Size
- Voltage Drop Calculation
- Maximum Length for voltage or % drop
- Maximum Load for voltage or % drop
- Impedance given wire length

o Motors
- FLC, Wire, Breaker, Heater, Starter, Conduit etc. Sizing
- Locked Rotor Current
- KVAR Capacitor Correction
- NEMA Motor Dimensions

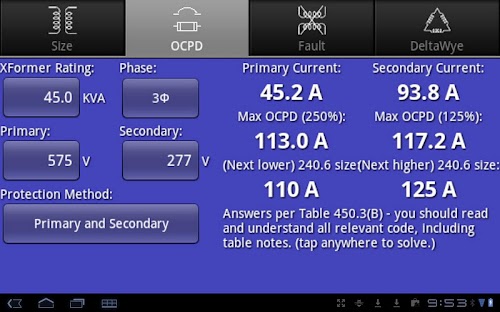

oTransformers
- Basic Transformer Sizing
- Overcurrent Protection Device Sizing
- Transformer Faults
- Delta-Wye configuration

o Wire / Device info

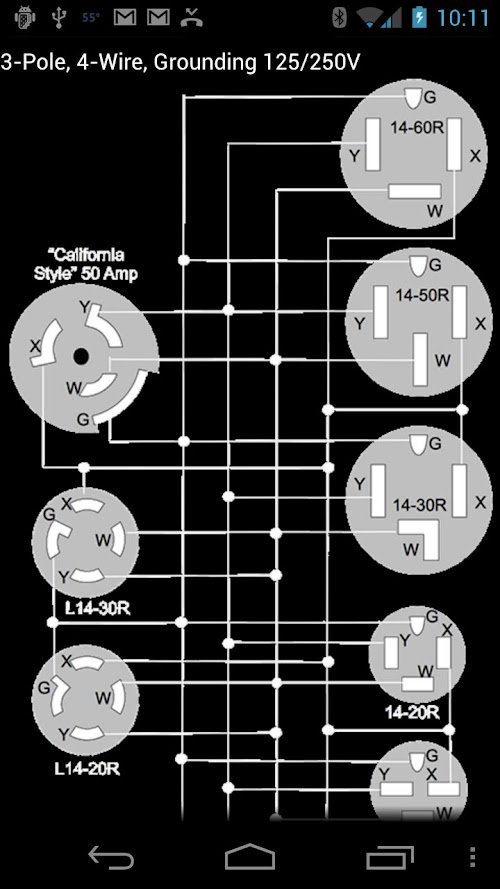

- Standard Receptacle configurations
- AWG-Metric wire size comparison
- Ethernet TIA-568A/B Color Codes
- RJ 11/14/25 Color Codes
- Resistor Color Codes

o Other
- In-Foot <-> Metric, Construction Fraction <-> Decimal converter
- Parallel Load Calculator

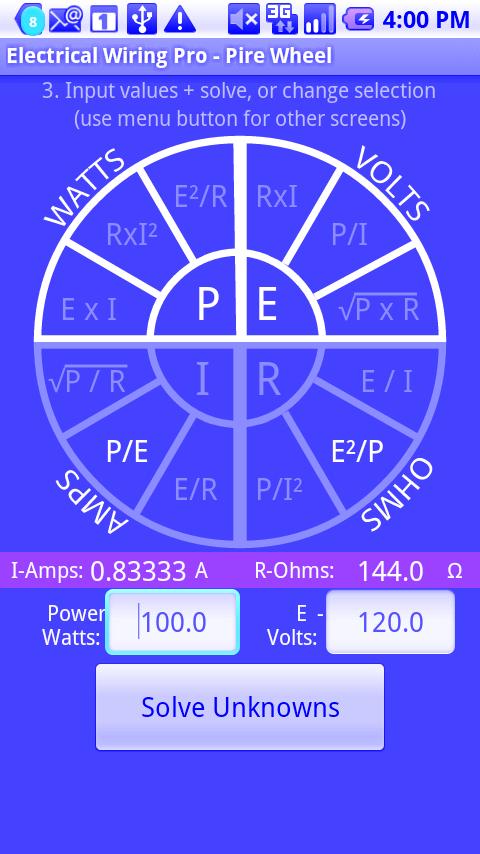

- Pire Wheel / Ohms Law
- Cover Depth

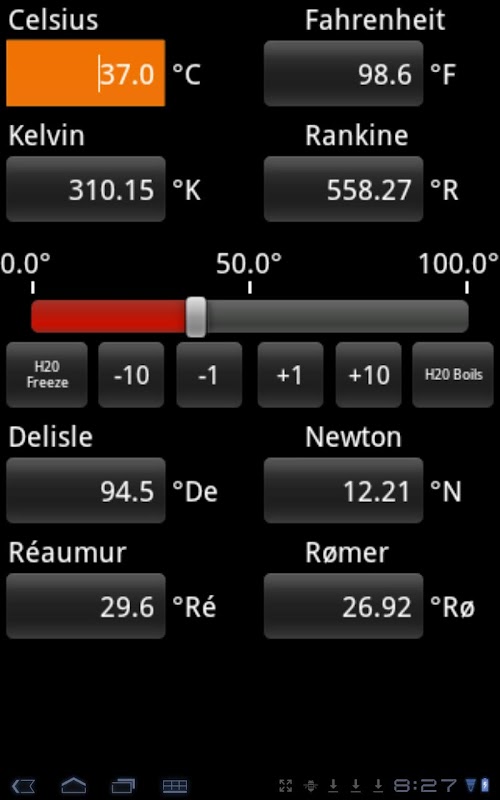

- Temperature Conversion for 8 different scales

If you would like to report bugs or suggestions, please send them to:
support aatt intineo dot com
rather than use the comment mechanism so we can respond
directly -- thank you.
