G-NetLog

About G-NetLog Android App

G-NetLog is a fieldtest/netmonitor application for UMTS/GSM/LTE/CDMA/EVDO network. This is similar to G-NetTrack Pro, but without map support and is suitable for devices without Google Play services.

G-NetLog manual:
http://www.gyokovsolutions.com/manuals/gnetlog_manual.php

The measurements are:

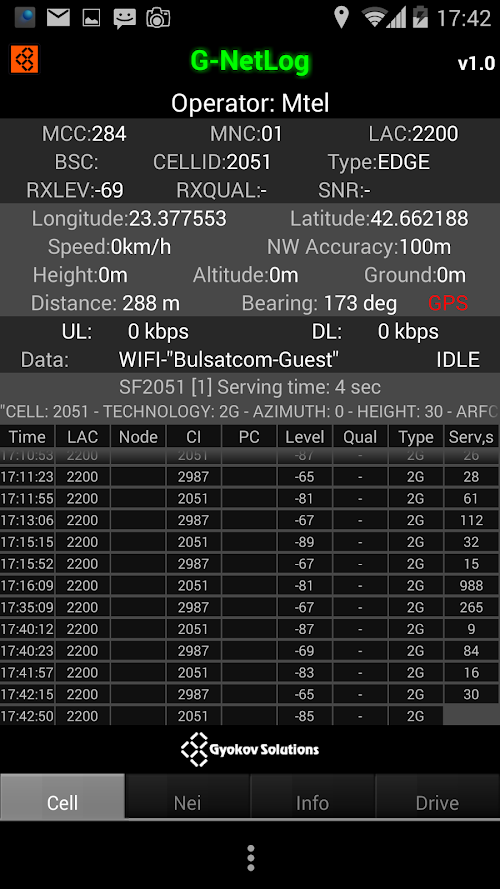

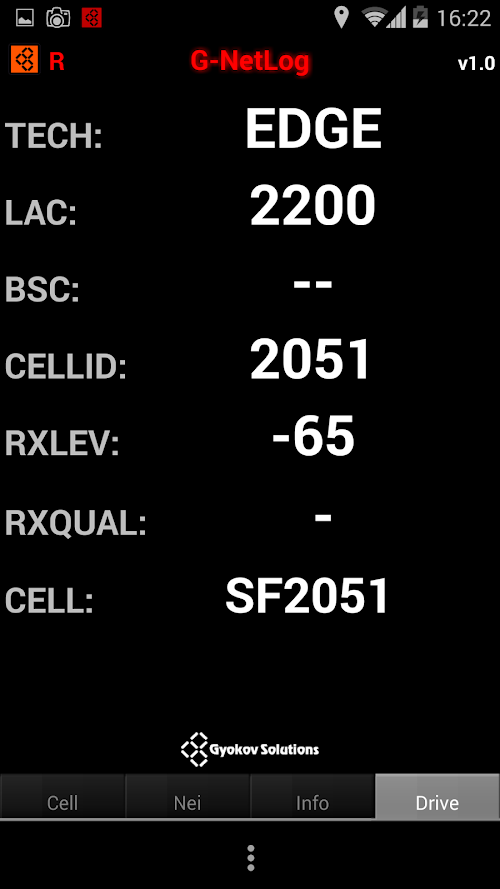

Serving Cell:
LEVEL (4G-RSRP, 3G-RSCP, 2G-RXLEV)
QUAL (4G-RSRQ, 3G-ECNO, 2G-RXQUAL)
SNR (4G only)
MCC, MNC, CELLID, eNodeBID/RNCID, LAC/TAC

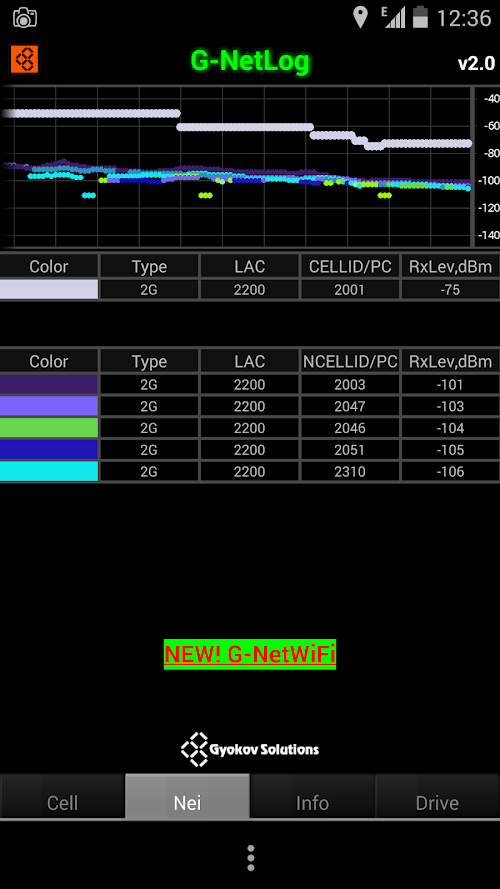

Neighbor Cells:
LEVEL (4G-RSRP, 3G-RSCP, 2G-RXLEV)
CELL (4G-PCI, 3G-PSC, 2G-CELLID)

Other:
downlink/uplink bitrates, speed, technology, phone state, cell layer

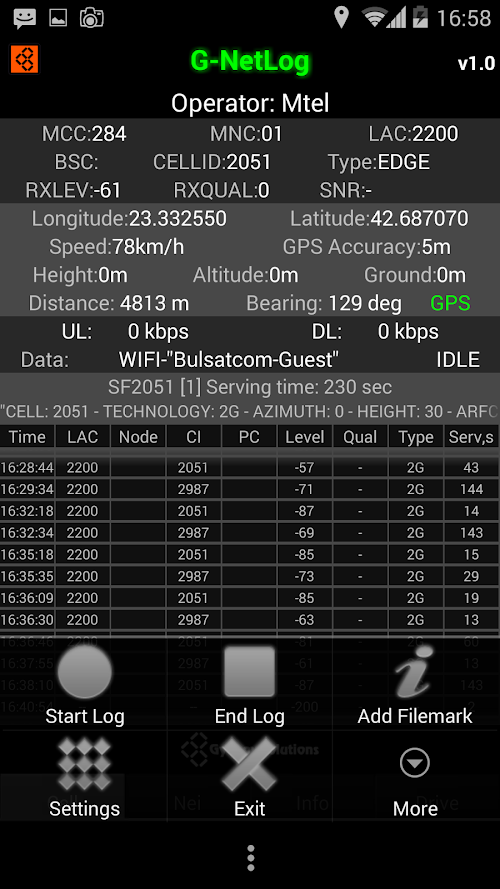

Measurements are written in text and kml logs. They are located in folder G-NetLog_Logs.

-Text Log – tab delimited multipurpose format – useful for MS Excel and database applications. Can be analyzed with G-NetLook Pro
-KML log – for Google Earth visualization


Auto Indoor Mode
-used in tunnels and places with bad GPS coverage
-when GPS accuracy fails below a threshold the measurements are buffered and when the accuracy is good the measurement are plotted on a straight line between the point of GPS fix loss and recovery

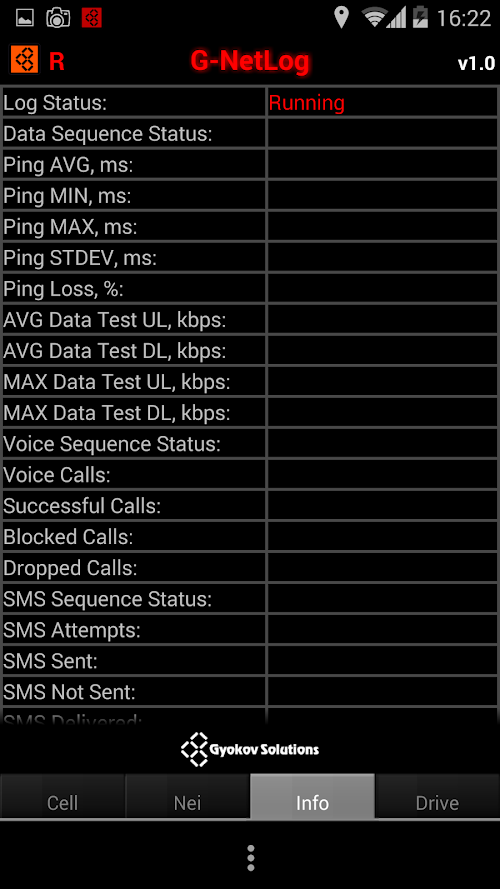

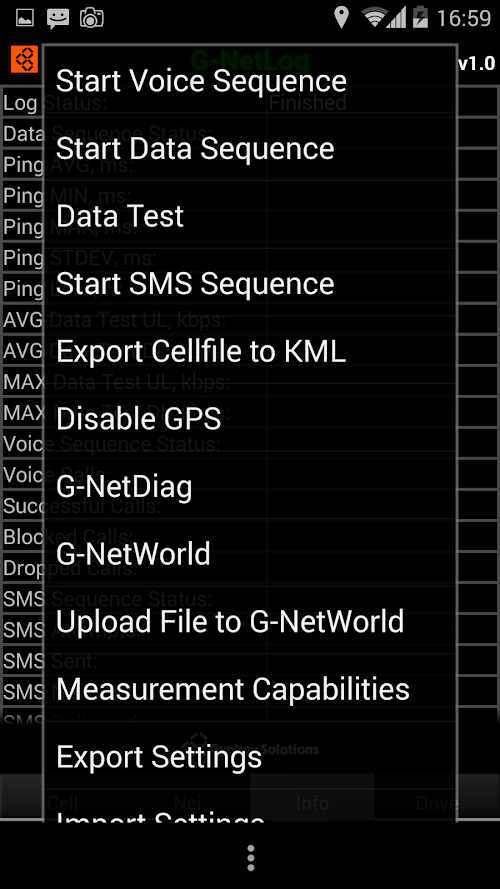

Automatic test sequences

VOICE CALL - sequence of voice calls with pause
-Statistics - Call Start, Call Block, Call Drop, Call End
DATA - sequence of ping, upload and download
-Statistics - DL/UL bitrate, AVG PING, MIN PING, MAX PING, STDEV PING, PING LOSS
SMS - sequence of SMS
-Statistics – SMS delivery


CELL Data import from text cellfile

Cellfile – text file in tab delimited format. It should be in folder G-NetLog_Logs/cellfile.
Here is a sample cellfile:
http://www.gyokovsolutions.com/downloads/G-NetTrack/cellfile.txt

Cell information in cellfile:
-Geographical – longitude, latitude
-Network – CELLNAME, MCC, MNC, CELLID, LAC/TAC, eNodeBID, PCI
-Site specific – azimuth, height, tilt
