HPLC Simulator Free

About HPLC Simulator Free Android App

HPLC Simulator is a sophisticated (Ultra) High-Performance Liquid Chromatography simulator for your phone or tablet. Explore a wide range of chromatographic parameters and see their effects on a simulated chromatogram.

For both advanced and novice users - play with it for a little while and you're bound to learn something new. The HPLC Simulator also makes a great reference while you're working on a real system. Use it to estimate backpressure, dead time, and other experimental parameters.

Features controls for:

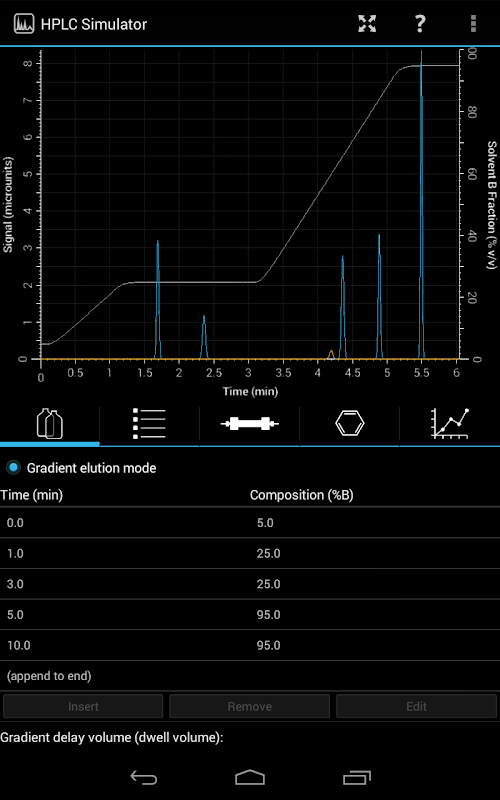

- Isocratic and gradient elution modes
- Organic modifier (acetonitrile or methanol)

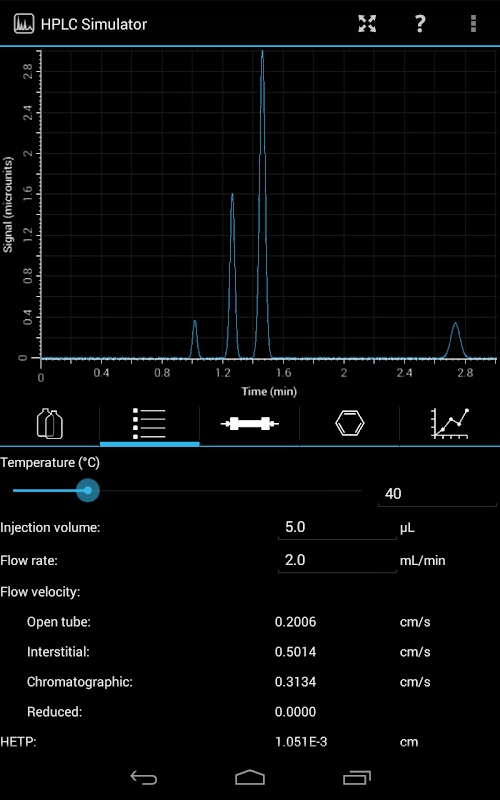

- Temperature
- Injection volume
- Flow rate
- Particle size

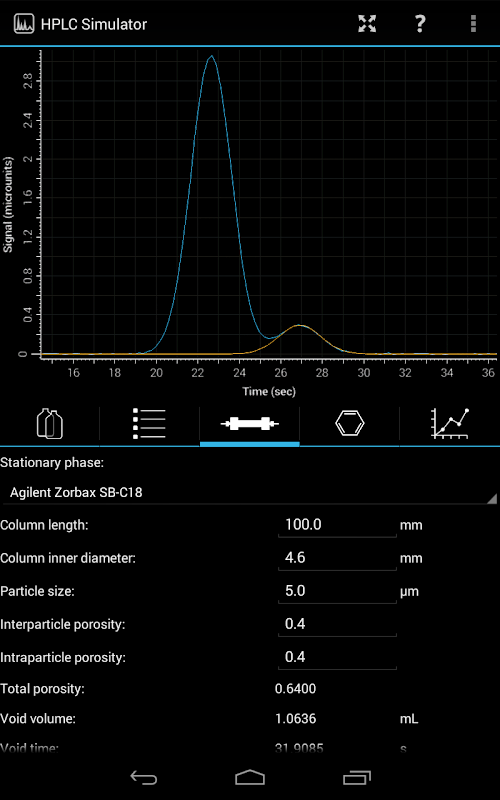

- Column length and diameter
- Detector time constant
- Noise level
- Interparticle and intraparticle porosity
- Reduced van Deemter terms

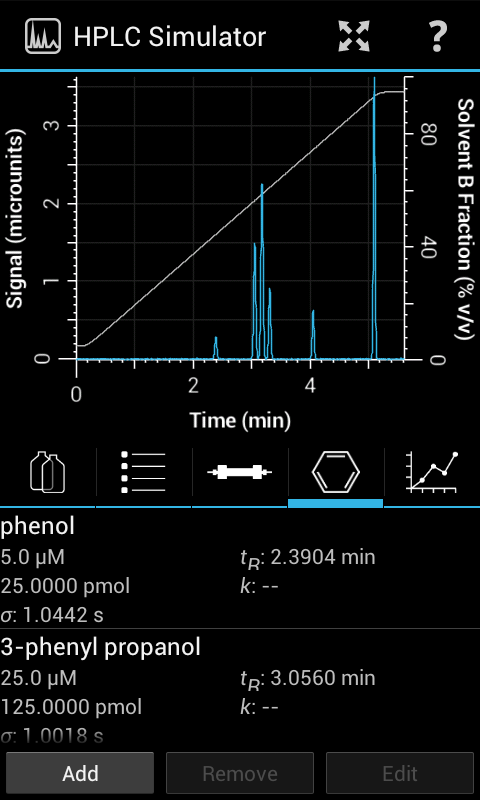

- Sample composition (22 compounds to choose from)
- Non-mixing gradient delayvolume (in gradient mode)
- Mixing dwell volume (in gradient mode)
- Post-column tubing

Also features indicators for:
- Flow velocity (open tube, interstitial, chromatographic, and reduced)
- Total porosity
- HETP
- Reduced plate height
- Number of theoretical plates
- Backpressure
- Eluent viscosity
- Average analyte diffusion coefficient
- Void volume
- Void time
- Retention factor of each solute
- Retention time of each solute
- Peak width of each solute
- Solvent composition at the column inlet
- Retention factor as a function of time

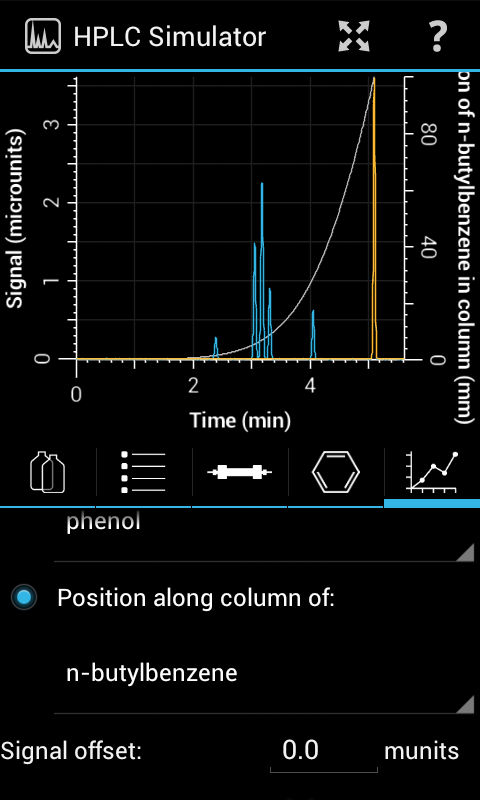

- Position of a selected compound along the column

The free version of HPLC Simulator does not allow the addition, removal, or editing of compounds in the injection mixture.
