WiFiSwitchController

About WiFiSwitchController Android App

https://play.google.com/store/apps/details?id=app.akexorcist.wiflyswitchcontroller

Please attention:http://www.smartarduino.com/

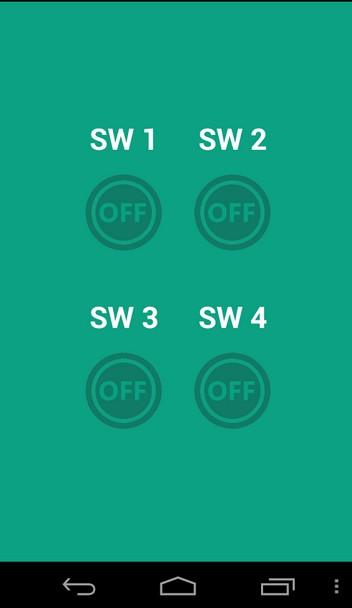

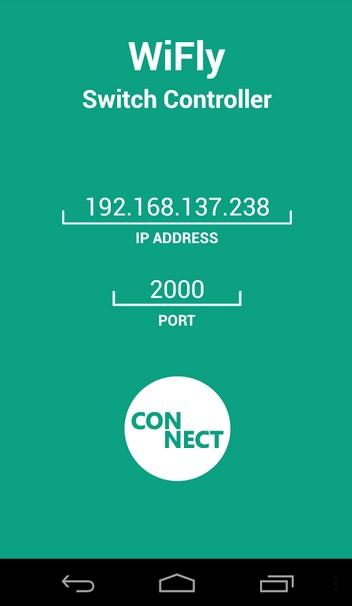

Application for control Unicon board via WiFi to control LED. Use with WiFly Module from Sparkfun to communication by TCP connection. Make your android device to WiFi Hotspot and programmed POP-BOT XT to connected to that hotspot. You can applied circuit to real light bulb or outlet in your home.

If you want to control with the PC, use this.
http://goo.gl/lf9Qo

** WLAN only, not include internet connection.

ZX-LED : http://goo.gl/X352h
Unicon Board : http://goo.gl/95WTK
RN-XV WiFly Module : http://goo.gl/AjHqY

Connect WiFly Module to UART1 on pin 0 (RXD) and pin 1 (TXD)
connect pin 4 (A6) and 19 (A1) with 1st ZX-LED
connect pin 12 (A11) and 21 (A3) with 2nd ZX-LED
connect pin 30 (A2) and 20 (A2) with 3rd ZX-LED
connect pin 6 (A7) and 22 (A4) with 4th ZX-LED

Source code for this project
(Include C# for PC, Eclipse for Android, Arduino for Unicon Board and .exe for PC)
http://goo.gl/zMKOG

WiFly's library for arduino to used with this application
https://github.com/harlequin-tech/WiFlyHQ


See more detail from www.tpemagazine.com on issue 38
